How to Install a Powered Anode Rod: Step-by-Step Guide

Installing a powered anode rod takes 30 to 45 minutes and requires no special plumbing skills for a standard top-port tank. You need a 1-1/8 inch socket to remove the old rod and a 1-3/8 inch socket to seat the new one. This guide covers compatibility checks, tools, the full 10-step process, how to handle a stuck old rod, post-install checks, and what to do after installation.

Key Takeaways

• Check compatibility before ordering - confirm a standard 3/4-inch NPT top-mounted port and tank under 15 years old.

• Have the right sockets ready - 1-1/8 inch for the old rod, 1-3/8 inch for the Chromex rod. A 6-point socket prevents rounding on corroded hex heads.

• Partial drain, not full drain - 2 to 3 gallons is enough to relieve pressure. Keeping the tank heavy helps resist rotation during removal.

• Stuck rod protocol - penetrating oil first, breaker bar extension second, impact wrench third. Short bursts break corrosion bonds that steady pressure cannot.

• Snug, not maximum torque - 15 to 25 foot-pounds on install. Over-tightening strips threads and makes future removal a nightmare.

• Green light confirms the system is live - if it does not illuminate, confirm the tank is fully air-purged and the adapter is fully seated in the outlet.

The Chromex Powered Titanium Anode Rod ships with PTFE tape, a power adapter with indicator light, and full installation instructions. Everything needed for a complete installation is in the box.

What Do You Need to Check Before Installing a Powered Anode Rod?

Before buying a powered anode rod or picking up any tools, confirm your tank meets these 4 criteria. Skipping this step is the most common reason for a wasted installation attempt.

Port Type

The Chromex powered titanium anode rod requires a standard top-mounted 3/4-inch NPT anode port. Most residential tank brands - Rheem, AO Smith, State, American Water Heaters, and Kenmore - use this configuration. Bradford White is the main exception. Many Bradford White models use an outlet-integrated anode port. Check your model number before ordering.

Tank Size

The Chromex rod is engineered for tanks from 40 to 89 gallons. Browse the full Powered Anode Rods collection to confirm sizing for your specific tank volume. Installing a rod sized for the wrong tank produces uneven current distribution and incomplete protection.

Tank Age and Condition

A powered rod stops active corrosion and protects a structurally sound tank for its remaining service life. It cannot reverse corrosion damage that has already penetrated the tank lining. If your tank is producing rusty water or is over 15 years old, have a plumber inspect it before any anode work. The U.S. Department of Energy identifies tank age and corrosion history as the primary factors determining whether maintenance investment in an existing heater is worthwhile.

Overhead Clearance

The Chromex powered rod is 12 inches tall. You need 12 to 14 inches of clear vertical space above the anode port. Measure this before starting - basement and utility room installations almost always have adequate clearance, but closet and alcove installations can be tight.

What Tools Do You Need to Install a Powered Anode Rod?

Gather everything before opening the drain valve. An incomplete toolkit mid-installation - with the tank drained and the port open - is the most stressful and easily avoided installation problem.

PTFE thread tape ships inside the Chromex box. All other items are standard plumbing toolkit. A 1-1/8 inch socket can be found individually at any hardware store for under $10. An impact wrench is optional for a new tank but strongly recommended for any tank over 3 years old - seized rods are extremely common and an impact wrench resolves them in seconds.

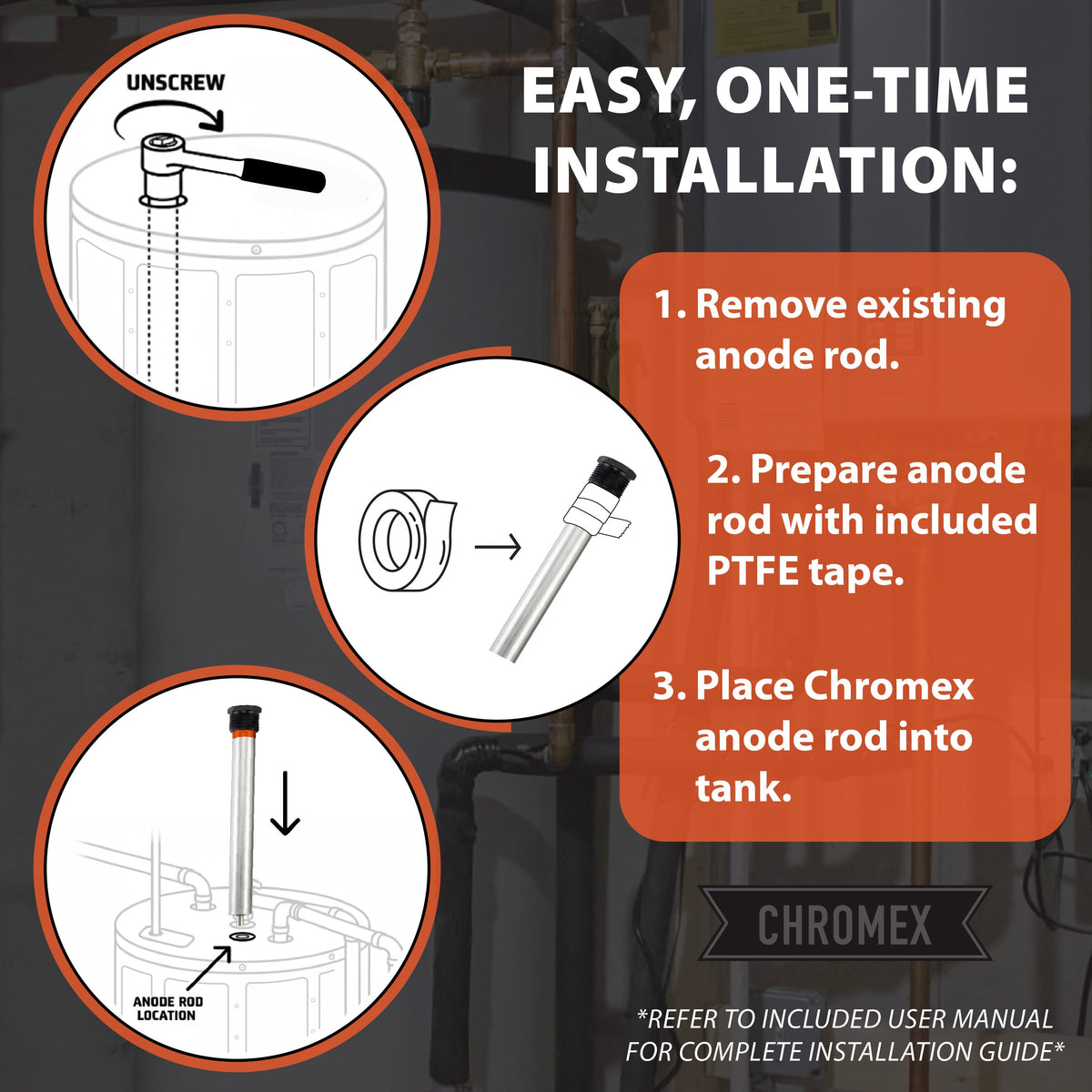

How Do You Install a Powered Anode Rod? The Full 10-Step Process

The 2 most common DIY anode rod mistakes are under-draining the tank and over-tightening the new rod. Both are avoidable. Follow these steps in order without skipping.

Step 1 - Shut Off Power

For electric heaters: switch off the dedicated circuit breaker. Do not just turn the thermostat to its lowest setting. The heating elements must be fully de-energized before you drain any water - running a dry element even briefly burns it out.

For gas heaters: turn the control dial to the Pilot setting. Do not shut off the gas line.

Wait 30 to 60 minutes after shutting off power. Water inside the tank runs near boiling temperature. Draining superheated water without a cool-down period is a serious burn risk. The U.S. Department of Energy water heater safety guidelines confirm that allowing tank temperature to drop before any drain procedure is the standard safety requirement for residential water heater servicing.

Step 2 - Shut Off Cold Water Supply

Close the cold water inlet valve above or near the top of the tank. Confirm it is closed by briefly opening a hot water tap inside the house - flow should slow and stop within a few seconds.

Step 3 - Drain 2 to 3 Gallons

Attach a short hose to the drain valve at the tank base and run it to a bucket or floor drain. Open the valve and let 2 to 3 gallons out. This relieves internal pressure and drops the water level just below the anode port. You do not need to drain the full tank. Keeping the tank mostly full during removal is an advantage - the weight of the water inside helps resist rotation when you apply torque to the rod.

Step 4 - Locate and Access the Anode Port

On most tanks the anode port sits on top of the unit, sometimes under a plastic cap or a small foam plug. Remove the cap or foam to expose the hex head. On some older Rheem and AO Smith models, the hex head may sit beneath a sheet metal cover panel that unscrews or lifts off.

Step 5 - Remove the Existing Anode Rod

Seat your 1-1/8 inch socket squarely over the hex head of the existing rod. Use a 6-point socket rather than a 12-point - a 6-point socket is far less likely to round off a corroded hex head. Apply firm, steady counterclockwise pressure.

If the rod will not move: apply penetrating oil around the base of the hex head, wait 10 to 15 minutes, and retry with a breaker bar. The Association for Materials Protection and Performance (AMPP) documents that corrosion bonding between threaded anode rod fittings and tank ports is a predictable outcome of extended galvanic protection service - meaning a seized rod is a sign the old rod was doing its job, not a sign of installation error. For rods that still will not break free, an impact wrench in short 1 to 2 second reverse bursts is the most reliable solution. The hammering action breaks corrosion bonds that steady pressure cannot shift.

Once the rod breaks free, unscrew the rest by hand and lift it straight out. Have a bucket ready - some water will follow it out.

Step 6 - Inspect the Port Threads

Before seating the new rod, shine a light into the port and inspect the threads:

• Light rust or mineral deposits - normal. A gentle pass with a wire brush clears them.

• Heavily fouled threads - clean with a wire brush and rinse before installing the new rod.

• Visibly stripped or cross-threaded - do not force the new rod in. A plumber should assess the port before you proceed.

Step 7 - Apply PTFE Tape to the New Rod

Take the PTFE thread seal tape included with your Chromex rod. Wrap it clockwise around the threads - the same direction as the thread pitch - making 3 to 4 complete overlapping passes. Wrapping counterclockwise causes the tape to bunch and unravel when the rod goes in. 4 to 6 layers provide a more robust seal and make future removal significantly easier.

Step 8 - Install the Powered Anode Rod

Lower the Chromex Powered Titanium Anode Rod straight into the port, keeping the power cable clear of the port lip. Hand-tighten clockwise until you feel firm resistance - typically 4 to 6 full turns.

Switch to your 1-3/8 inch socket and tighten to snug. The correct torque range for a 3/4-inch NPT port is 15 to 25 foot-pounds - snug and secure without maximum force. Over-tightening is a major cause of stripped port threads and cracked hex fittings on future removal. The NACE International engineering standard for threaded ICCP electrode installation specifies that fittings should be torqued to manufacturer specification rather than maximum thread engagement, specifically to preserve port integrity for future service.

Step 9 - Refill the Tank

Close the drain valve at the base. Open the cold water inlet valve fully. Open a hot water tap inside the house to let air escape from the top of the tank as it fills. Keep the tap open until a steady, uninterrupted flow of water runs out - that confirms the tank is full and all trapped air is purged.

While the tank fills, inspect the base of the newly installed rod for drips. A brief weep that stops once the tank reaches full pressure is normal. Any continuous drip means the thread seal is incomplete - shut the water off, add another layer of PTFE tape, and reinstall.

Step 10 - Restore Power and Connect the Adapter

Once the tank is full and leak-free, restore power at the circuit breaker (electric) or return the gas control to your normal temperature setting (gas).

Route the Chromex power adapter cord to the nearest 120V outlet and plug in. The green indicator light should illuminate within seconds, confirming the ICCP system is delivering current at the correct threshold for your water conditions. If the light does not come on, confirm the tank is completely full - the system needs water to complete the circuit and will not operate in a partially drained tank.

What Should You Expect After Installing a Powered Anode Rod?

Rotten Egg Smell

If your hot water had sulfur odor before installation, expect it to begin clearing within 24 to 48 hours. The ICCP current disrupts the electrochemical conditions sulfur-reducing bacteria (SRB) need to survive. Most homeowners report significant improvement within the first day and full elimination within 2 to 3 days.

If odor persists after 72 hours, flush the tank. Residual hydrogen sulfide gas can linger in standing water even after the bacteria are eliminated. The EPA Ground Water and Drinking Water resource documents how sulfate and microbial content in both well and municipal water can sustain hydrogen sulfide presence in storage systems - a thorough flush addresses this directly. For homes with heavy sediment, the descaling solution paired with a full flush removes mineral deposits that can harbor SRB deeper in the tank. The Water Heater Tank Flushing collection has everything needed for a complete flush.

Water Taste and Clarity

A temporary change in hot water taste or slight discoloration in the first 24 to 48 hours is normal. This is residual byproduct from the old sacrificial rod being flushed through the system. It clears with normal hot water use.

Annual Maintenance

Annual maintenance for a powered anode rod is 1 step: check that the green indicator light is on. The most common reason it goes off is the adapter being accidentally unplugged during unrelated plumbing work. If the outlet is live and the tank is full but the light stays off, contact Chromex for warranty support.

How Do You Troubleshoot Common Powered Anode Rod Installation Problems?

Old Rod Will Not Come Out

The most frequently reported installation challenge. Work through these steps in order:

• Penetrating oil - apply generously, wait 15 minutes minimum, retry with a breaker bar.

• Pipe extension - slide a steel pipe over the breaker bar handle to extend your lever arm. Use body weight over the wrench rather than arm strength alone.

• Impact wrench - 1 to 2 second bursts on reverse. The hammering action breaks corrosion bonds that steady pressure cannot.

• Heat - a heat gun applied around the port for 60 to 90 seconds expands the metal slightly. Do not use an open flame near a water heater.

Dripping From the Port After Install

Shut off the water supply, drain 2 to 3 gallons, and remove the rod. Add a fresh layer of PTFE tape - 4 to 5 wraps - reinstall, and restore water. If the drip continues after 2 tape applications, the port threads may be worn and a plumber should assess the fitting before further attempts.

Indicator Light Not Illuminating

Confirm the tank is completely full before troubleshooting. The ICCP circuit requires water between the rod and the tank walls to complete. Open a hot water tap, purge all air from the tank, and recheck the light. If the outlet is live, the tank is full, and the light still does not illuminate, check the adapter connection at the rod and contact Chromex support.

What Maintenance Does a Powered Anode Rod Require After Installation?

A powered anode rod handles corrosion protection and SRB elimination for the life of the tank. 2 supporting tasks round out a complete water heater maintenance routine.

• Annual descaling flush - sediment and limescale accumulate at the base of every tank regardless of anode type. The Complete Kits collection includes the pump, hoses, and descaler needed for a full annual flush.

• Descaling solution for hard water - if your area has hard water, scale on the heat exchanger reduces efficiency over time. The Descaling Solutions collection covers the correct product and concentration for an annual flush.

For tanks that are not compatible with a top-port powered rod - including most Bradford White models - the Magnesium Anode Rods collection covers standard replacement options. For homes that also need tankless water heater maintenance supplies, the Tankless Water Heater Maintenance collection has flush kits, descalers, and service tools in one place.

Frequently Asked Questions

Do I need a plumber to install a powered anode rod?

No. A standard top-port installation is a DIY task requiring basic tools and no license. The situations that warrant a plumber are a seized rod that does not respond to penetrating oil or an impact wrench, or a port with visibly stripped threads.

How long does installation take?

30 to 45 minutes when the old rod comes out without resistance. Add 20 to 30 minutes if the old rod is stuck and requires penetrating oil and extra leverage. The Chromex rod ships with PTFE tape and step-by-step instructions - no additional materials need to be sourced.

Can I install a powered rod if my tank has 2 anode ports?

Yes. Install the Chromex powered rod in 1 port. The existing sacrificial rod in the second port can stay in place - there is no electrical conflict, and the powered rod delivers full cathodic protection across the entire tank on its own.

What socket size do I need?

A 1-1/8 inch (28mm) 6-point socket removes the existing rod. A 1-3/8 inch (35mm) socket installs the Chromex powered rod. Both sizes are standard and available individually at any hardware store.

Is there any electric shock risk from the powered rod?

No. The ICCP system operates on low-voltage DC current - under 2 volts at the rod surface - which presents no shock hazard during normal operation. The power adapter is UL certified for continuous unattended use. Standard precautions apply: do not handle the adapter with wet hands and confirm the outlet is correctly grounded.

What if there is not enough clearance above the tank?

The Chromex powered rod requires 12 to 14 inches of vertical clearance above the port. If your installation space is tighter than that, the rod cannot be inserted without tilting the tank. Contact Chromex before purchasing if you are unsure - alternative installation approaches may apply for certain tank models.
