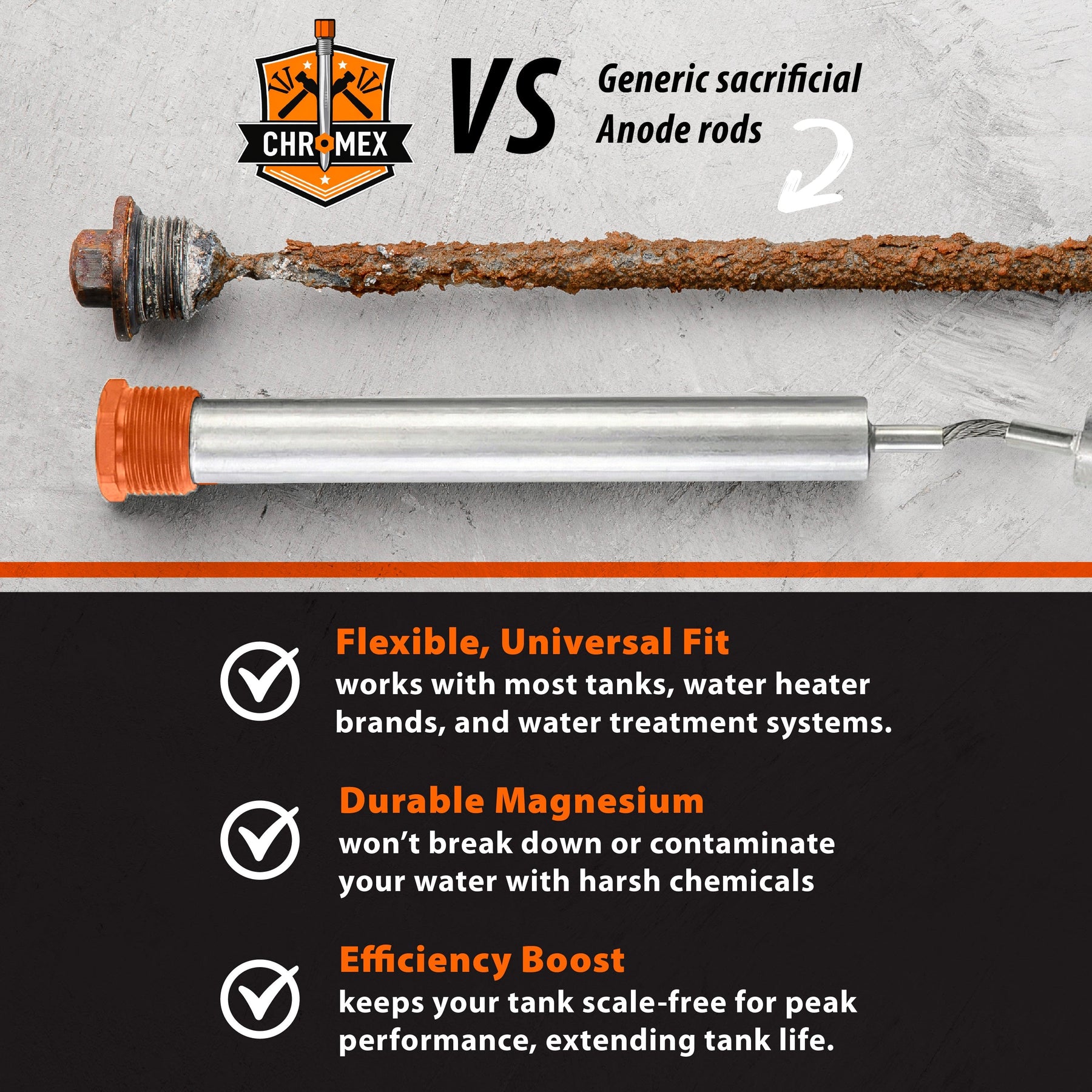

What Is the Difference Between a Passive and Powered Anode Rod?

The difference between a passive (sacrificial) anode rod and a powered anode rod is the protection mechanism. A passive anode rod uses a reactive metal that corrodes itself to protect the tank - consuming the rod material over time until it is gone. A powered anode rod uses a continuous low-voltage electrical current through a titanium electrode to suppress corrosion without consuming any material. One depletes. The other does not.

Key Takeaways

• A passive anode rod uses galvanic self-sacrifice to protect the tank - it corrodes itself and eventually depletes, requiring replacement every 3 to 5 years.

• A powered anode rod uses ICCP through a titanium electrode and an external electrical current - the rod does not deplete and requires no replacement over the life of the tank.

• Passive magnesium rods are the primary source of hydrogen sulfide odor in hot water. Powered rods eliminate that odor source within 24 hours of installation.

• Bradford White outlet-port models are not compatible with standard powered rods. Passive replacement rods are the correct choice for those models.

• In hard water regions, both a powered rod for corrosion protection and a descaling routine for mineral scale are needed - neither substitutes for the other.

• View the Chromex Powered Titanium Anode Rod for full compatibility details and tank sizing before ordering.

What Is a Passive Anode Rod?

A passive anode rod - also called a sacrificial anode rod - is the factory-installed corrosion protection device found in virtually every residential tank water heater sold in the United States. It is made from magnesium, aluminum, or aluminum-zinc alloy, and it threads into a standard 3/4-inch NPT hex port at the top of the tank.

The protection mechanism is galvanic corrosion. Because magnesium and aluminum are more electrochemically reactive than steel, the corrosive electrochemical process attacks the rod material preferentially, sparing the steel tank walls. This passive protection requires no power source - it happens naturally through direct electrochemical contact between the rod and the water.

The limitation is depletion. The rod material is consumed in this process. A standard magnesium rod lasts 3 to 5 years in average municipal water. In soft water or high-temperature settings, that lifespan can drop to 18 months or less. Once the rod is fully depleted, the tank has no corrosion protection - and most homeowners never know to check it until the tank fails.

Passive rods also contribute to the rotten egg smell in hot water. Sulfate-reducing bacteria that naturally occur in water supplies feed on magnesium and produce hydrogen sulfide gas as a metabolic byproduct. The Magnesium Anode Rods collection and the Aluminum-Zinc Anode Rods collection show the standard sacrificial options for compatible tanks.

What Is a Powered Anode Rod?

A powered anode rod uses Impressed Current Cathodic Protection - commonly abbreviated as ICCP - to protect the tank through an active electrical system rather than a passive chemical reaction. The Association for Materials Protection and Performance (AMPP) defines ICCP as the established engineering method for protecting metal structures in continuous electrochemical contact with water or soil. The same technology protects ship hulls, offshore oil platforms, buried pipelines, and harbor infrastructure globally.

The rod itself is made from titanium coated with Mixed Metal Oxide (MMO). NACE International - now merged into AMPP - codified that ICCP electrode materials must remain chemically stable under electrochemical conditions. Titanium with MMO coating meets that standard: it does not corrode, dissolve, or deplete during the protection process.

A small AC power adapter plugs into a standard 120V outlet and supplies a continuous low-voltage DC current through the titanium rod. That current shifts the electrochemical potential of the steel tank walls into a protected range where oxidation cannot occur. Protection is continuous, consistent, and does not degrade over time the way galvanic protection does as the rod depletes. View the Powered Anode Rods collection for sizing options by tank capacity.

What Are the Key Differences Side by Side?

Protection mechanism - passive rods use galvanic self-sacrifice; powered rods use externally supplied electrical current (ICCP). The passive mechanism is inherently finite. The ICCP mechanism is not.

Rod material - passive rods use magnesium, aluminum, or aluminum-zinc. Powered rods use titanium with MMO coating. Titanium is chemically inert under water heater conditions. Magnesium and aluminum are intentionally reactive.

Depletion - a passive rod depletes and must be replaced every 3 to 5 years, sooner in soft or high-mineral water. A powered rod does not deplete and requires no rod replacement over the life of the tank.

Rotten egg smell - passive magnesium rods are the primary source of hydrogen sulfide odor in residential hot water. Powered rods eliminate the magnesium nutrient source and suppress the bacterial environment that produces hydrogen sulfide.

Power requirement - a passive rod requires no electricity. A powered rod requires a standard 120V outlet and draws under 1 watt continuously - approximately $3 per year in electricity at average US residential rates.

Maintenance - a passive rod requires inspection every 2 to 3 years and replacement when depleted. A powered rod requires only an annual check that the indicator light on the adapter is on.

Bradford White compatibility - many Bradford White tank models use an outlet-integrated anode port rather than a standard top-mounted port. This is incompatible with standard powered rods. Passive replacement rods remain the correct choice for those models.

Which Type Is Right for Your Situation?

A passive rod may be sufficient when the water heater uses a Bradford White outlet-port configuration, the tank is over 15 years old and approaching replacement, or the homeowner replaces rods themselves every 3 to 5 years with no odor issues in standard city water.

A powered rod is the stronger choice for homes with well water or softened water - where passive rods deplete fastest and odor problems are most persistent. The U.S. Department of Energy identifies anode rod management as one of the most cost-effective maintenance steps for extending water heater service life, and a powered rod removes that maintenance requirement entirely after installation.

For homes in hard water regions, the EPA Ground Water and Drinking Water program documents that elevated calcium and magnesium mineral content creates two distinct maintenance needs: corrosion protection, which the powered rod handles, and mineral scale removal, which requires periodic descaling. The Descaling Solutions collection covers the correct products for that separate task. For a complete annual maintenance kit combining both, the Complete Kits collection bundles everything in one package.

Frequently Asked Questions

1. What is the main difference between a passive and powered anode rod?

A passive rod corrodes itself galvanically to protect the tank and eventually runs out. A powered rod uses an external electrical current through a non-depleting titanium electrode to achieve the same result without consuming any material. One has a defined lifespan. The other does not.

2. Can a powered anode rod replace a passive rod in any water heater?

It fits most standard tank water heaters from 40 to 89 gallons with a top-mounted 3/4-inch NPT anode port, including AO Smith, Rheem, State, and American Water Heaters. Bradford White models with outlet-integrated anodes are not compatible. Tankless water heaters do not use any anode rod.

3. Does a passive or powered rod do a better job of eliminating rotten egg smell?

 A powered rod is significantly more effective. Passive magnesium rods are the primary source of the sulfur smell - they feed the sulfate-reducing bacteria that produce hydrogen sulfide. A powered rod removes the magnesium nutrient source and disrupts the bacterial environment. Most households report odor elimination within 24 hours of installation.

4. How do I know which type of anode rod my water heater currently has?

Check the top of the tank for a hex cap or plastic cover at the anode port. Remove the cap and identify the rod material. Magnesium rods are silver-gray and will show surface corrosion. A powered rod will have a cable running from the fitting to a small AC adapter plugged into a nearby outlet.
