How Does a Powered Anode Rod Work? ICCP Explained

A powered anode rod works by driving a continuous low-voltage DC electrical current from a titanium electrode through the water in your tank, reversing the electrochemical reaction that causes rust. The technology is called Impressed Current Cathodic Protection (ICCP). It never depletes, never needs replacing, and eliminates rotten egg smell within 24 to 48 hours.

Key Takeaways

• ICCP drives a continuous DC current from the titanium rod through the water to the tank walls, reversing the electrochemical reaction that causes rust.

• Titanium with MMO coating is inert, never depletes, and is not consumed by the process. One installation lasts the life of the tank.

• The self-regulating current system automatically adjusts output based on water conductivity. No manual calibration needed.

• ICCP current disrupts the conditions sulfur-reducing bacteria need to survive, eliminating rotten egg smell typically within 24 to 48 hours.

• Circular rod design delivers 360-degree current distribution. Thin or L-shaped designs leave dead zones at the tank bottom.

What Problem Is a Powered Anode Rod Solving?

Every residential tank water heater is made of steel, and steel corrodes when it sits in contact with hot water for years. The industry solution has always been an anode rod: a reactive metal hung inside the tank that corrodes preferentially, drawing electrochemical attack away from the walls.

The traditional approach uses a magnesium anode rod or aluminum-zinc rod that slowly dissolves over time. When it runs out - typically in two to six years - the tank itself becomes the sacrificial element. Rust, sediment, and premature failure follow.

A powered rod solves the same problem differently. Instead of relying on a metal that sacrifices itself, it uses electricity to deliver continuous protection that never runs out. Understanding how it works means understanding the electrochemistry behind that difference.

What Is Impressed Current Cathodic Protection and How Does It Work in a Tank?

Impressed Current Cathodic Protection (ICCP) is a corrosion control method that applies a continuous low-voltage DC current to a metal structure submerged in an electrolyte - in this case, the steel walls of a water heater tank surrounded by water. The Association for Materials Protection and Performance (AMPP) - the primary international standards body governing cathodic protection - defines ICCP as the established engineering method for protecting metal structures in continuous electrochemical contact with water or soil. It has been applied at industrial scale on oil pipelines, ship hulls, harbour pilings, and offshore platforms for over 60 years.

Here is what happens inside the tank step by step:

• Step 1: The titanium electrode (the rod) is installed in the standard top-mounted anode port of the tank.

• Step 2: A small power adapter plugs into a nearby 120V outlet and converts AC household current into low-voltage DC.

• Step 3: The DC current flows from the titanium rod, through the water, to the steel tank walls.

• Step 4: The current makes the tank walls act as a cathode - the protected end of the electrochemical circuit - instead of the corroding end.

• Step 5: Corrosion is suppressed continuously, 24 hours a day, at a cost of under $3 per year in electricity.

The titanium electrode is chemically inert - it does not participate in the corrosion reaction and is not consumed by the process. This is why the rod lasts the full life of the tank while a sacrificial rod runs out.

Why Are Titanium and MMO Coating Used in Powered Anode Rods?

Titanium with a Mixed Metal Oxide (MMO) coating is used because it combines chemical inertness with high electron transfer efficiency - the two properties required for a permanent, effective ICCP electrode. NACE International - now merged into AMPP - codified the material science behind cathodic protection electrode selection, establishing that the electrode material must be stable under the electrochemical conditions of the protected environment.

Titanium is chosen because it is stable and will not corrode or react with the water under any normal water chemistry conditions. The MMO coating increases the active surface area of the electrode, delivering more consistent electron transfer across the full depth of the tank.

The Chromex powered anode rod uses a circular cross-section design. Because the rod is round, ICCP current radiates outward in all directions simultaneously, delivering equal protection across the full 360-degree interior surface of the tank. Thin or L-shaped designs create low-current dead zones at the tank bottom where corrosion can still develop.

How Does a Powered Anode Rod Eliminate Rotten Egg Smell?

Rotten egg smell in hot water is eliminated by ICCP current because the current disrupts the electrochemical conditions that sulfur-reducing bacteria (SRB) require to survive. Without the galvanic environment that sustains them, the bacteria die off and hydrogen sulfide production stops - typically within 24 to 48 hours of installation.

Sulfur smell is produced by SRB that thrive in the warm, low-oxygen environment inside a water heater. In tanks with magnesium sacrificial rods, SRB feed on the magnesium and produce hydrogen sulfide gas as a metabolic byproduct. The EPA Ground Water and Drinking Water resource documents how sulfate compounds in both well water and municipal supply create conditions that sustain SRB populations in storage tank water heaters - exactly the environment ICCP current disrupts.

How Does the Self-Regulating Current System Work?

The ICCP system is self-regulating - it automatically adjusts output current based on water conductivity without any manual calibration. Water conductivity varies significantly by water type: softened water has higher sodium content, which increases conductivity; well water can have high mineral and sulfate content; hard water regions have elevated calcium and magnesium. Each condition requires a different current level to maintain effective cathodic protection.

The Chromex powered rod adjusts output current automatically based on water resistance. Higher conductivity means less current is needed; lower conductivity means more. The U.S. Department of Energy identifies water chemistry as a primary variable affecting water heater component lifespan - the self-regulating current addresses this directly by matching protection output to actual water conditions. The green indicator light on the power adapter confirms the system is operating correctly. No manual adjustment is required.

What Does a Powered Anode Rod Protect Against?

A powered anode rod addresses 3 failure modes that shorten tank life: tank wall corrosion, sulfur-reducing bacteria, and limescale buildup.

• Tank wall corrosion: the primary cause of premature water heater failure, caused by electrochemical oxidation of the steel lining.

• Sulfur bacteria (SRB): the source of rotten egg smell in hot water, which the ICCP current disrupts within 24 to 48 hours.

• Limescale buildup: as a secondary benefit, ICCP current interferes with calcium deposit formation, reducing scale on the heat exchanger and maintaining heating efficiency longer.

For homes that also need to remove existing scale, the Descaling Solution handles mineral deposits already present. The Complete Kits collection bundles both for a full tank maintenance setup.

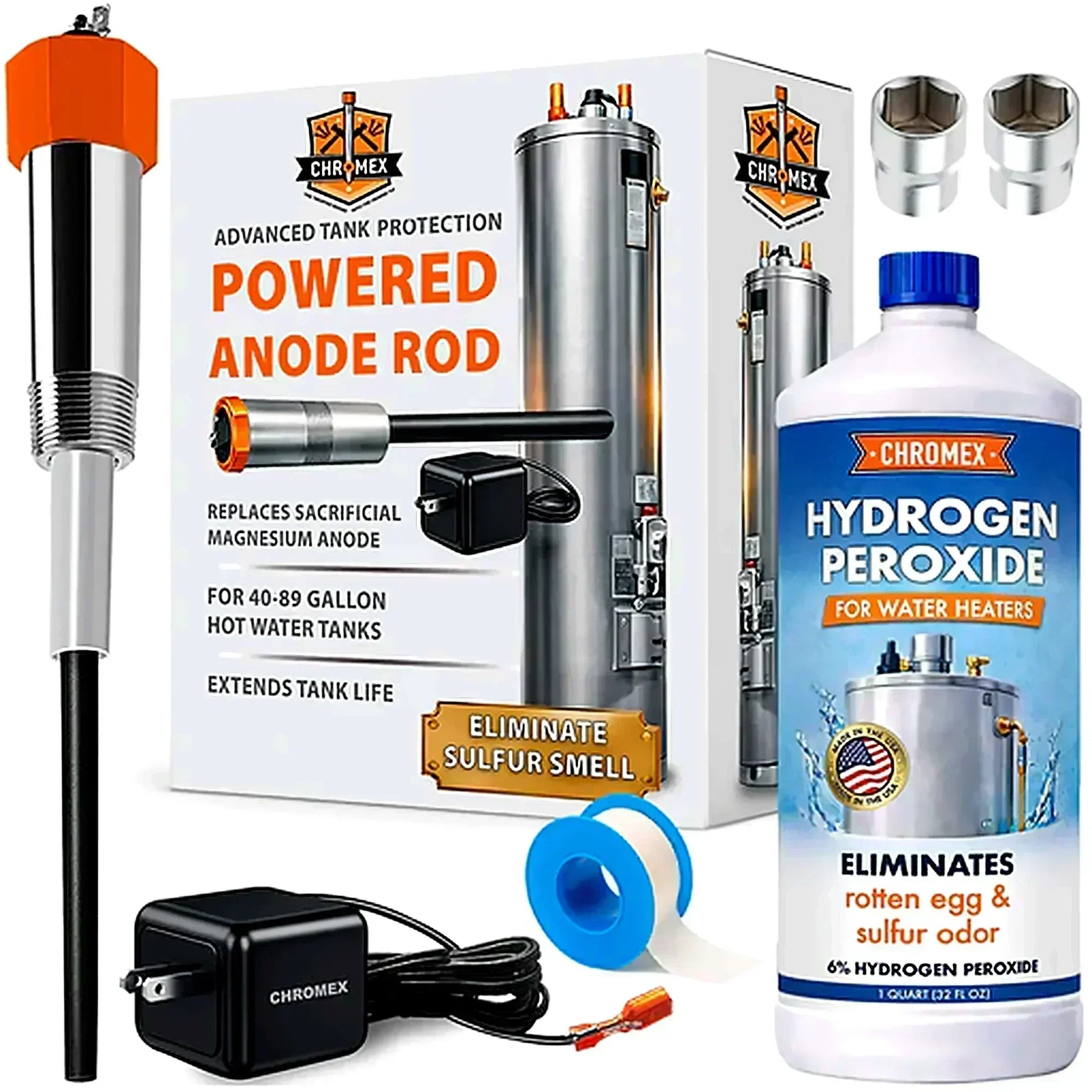

The Powered Anode Rods collection covers sizing options. The Chromex powered titanium anode rod fits top-port tanks from 40 to 89 gallons and includes PTFE tape and installation instructions.

Frequently Asked Questions

1. Does a powered anode rod need to stay plugged in permanently?

Yes. The ICCP system requires a continuous power connection to maintain cathodic protection. Short interruptions during power outages are not harmful, but the rod should remain plugged in at all times during normal operation.

2. How do I know the powered anode rod is working?

The green indicator light on the power adapter confirms the system is active and delivering current at the correct threshold. If the light goes off, check that the adapter is plugged in and the tank is full of water. The rod will not operate in a dry or partially drained tank.

3. Can a powered anode rod be installed in any water heater?

It fits the majority of residential tank water heaters with a standard top-mounted 3/4-inch NPT anode port - electric, gas, heat pump, solar, and geothermal. Models with non-standard or outlet-integrated anode port configurations are not compatible with a standard top-port installation.

4. Will the electrical current affect the water quality?

No. The ICCP current operates at very low voltage and introduces no chemicals, metals, or compounds into the water. Titanium is chemically inert. Most homeowners report cleaner-tasting hot water after installation because eliminating SRB removes the hydrogen sulfide causing both the odor and off-taste.

5. How long does a powered anode rod last?

The titanium electrode is designed to last the full service life of the tank - typically 15 years or more. The power adapter contains the only component with a finite lifespan; the indicator light will stop illuminating if it needs attention.

If your tank has a standard top-mounted 3/4-inch NPT port and is under 15 years old, a powered rod is the most effective corrosion protection upgrade available. View the Chromex Powered Titanium Anode Rod to confirm compatibility with your tank before ordering.
